Golden Laser Master M Series – Industrial Laser Cutting at a New Level
Golden Laser Master M Series – Industrial Laser Cutting at a New Level

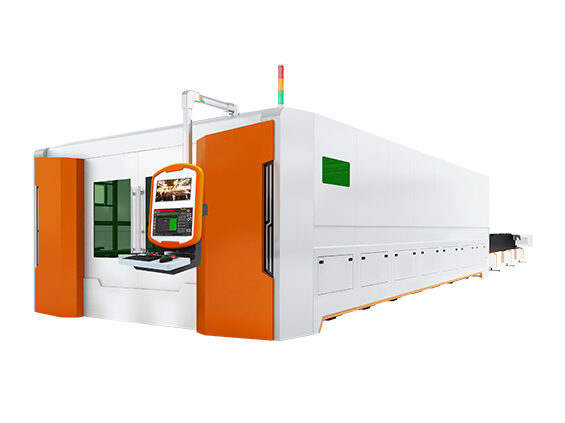

The Golden Laser Master M series is a line of high-power fiber laser cutting machines designed for industrial sheet metal processing. The equipment is intended for companies where high productivity, stable cutting quality, and continuous operation with thick metal are essential.
Master M series machines are widely used in heavy industry, machinery manufacturing, production of metal structures, tanks, construction elements, and large-scale components. The machine design is adapted for intensive operation, high speeds, and large working areas.
Key Features of the Master M Series
The series is based on a high-power fiber laser that provides high energy efficiency and lower operating costs compared to traditional cutting technologies. Depending on the configuration, the machines can be equipped with one or two working platforms, allowing material loading and unloading without stopping the cutting process.
The Master M series supports large working formats – up to 12 meters in length, which is especially important when processing large metal sheets. A rigid machine frame, precise motion systems, and modern laser sources ensure stable cutting quality even under maximum load.
20 kW Laser Cutting – An Optimal Solution for Thick Metal
The 20 kW configuration occupies an important position within the Master M series. It is a powerful and versatile solution for companies that regularly work with thick steel and non-ferrous metals.
The 20-kilowatt fiber laser enables efficient cutting of carbon steel, stainless steel, aluminum, copper, and other thick metals. In terms of edge quality and precision, this technology outperforms plasma cutting and reduces the need for additional mechanical processing.
High laser power provides:
-
stable cutting of thick materials;
-
high processing speed;
-
minimal heat-affected zone;
-
smooth and clean cutting edges.
Comparison of Golden Laser Machine Technical Parameters
To better understand the positioning of the Master M series and its differences from other Golden Laser solutions, the comparison table below presents the main technical parameters.
Comparison Table
| Parameter | Master M Series (Fiber) | Standard Fiber Series | CO₂ Series |
|---|---|---|---|
| Laser type | Fiber | Fiber | CO₂ |
| Power range | 10–30 kW | 3–12 kW | 100–500 W |
| Processing type | Sheet and thick metal cutting | Sheet metal | Non-metal materials |
| Max. steel thickness | up to 60–70 mm* | up to 20–30 mm* | not applicable |
| Working area | up to 2500×12000 mm and more | standard formats | depends on model |
| Positioning speed | up to 160 m/min | up to 120 m/min | lower |
| Acceleration | up to 2 G | up to 1.5 G | low |
| Table structure | One or two exchange tables | Single table | Static table |
| Materials | Steel, stainless steel, aluminum, copper | Steel, aluminum | Wood, acrylic, plastic |
| Main application | Heavy industry, mass production | Universal tasks | Advertising, engraving |
* Actual values depend on material type, gas, and cutting parameters.
How to Choose the Right Series
If production is focused on cutting thick metal, large volumes, and continuous operation, the Golden Laser Master M series — especially the 20 kW version — is the optimal choice.
Standard fiber models are suitable for universal applications, while CO₂ machines are mainly used for non-metal materials and engraving.
Conclusion
The Golden Laser Master M series is a professional solution for industrial laser cutting where power, reliability, and high productivity are critical. The 20 kW version provides confident thick-metal cutting and helps companies increase production efficiency, reduce post-processing costs, and ensure consistent part quality.
