Comparison of Vertical Machining Centers: Doosan DNM 5700, SMEC MCV 5700 and Haas VF-4

Comparison of Vertical Machining Centers: Doosan DNM 5700, SMEC MCV 5700 and Haas VF-4

Vertical Machining Centers (VMCs) are the backbone of modern manufacturing. Choosing the right machine directly affects productivity, precision, and cost efficiency. Below is a detailed comparison of three popular models, highlighting SMEC MCV 5700 as the best overall choice.

Key Technical Specifications

Doosan DNM 5700

• Travels: X 1050 mm, Y 570 mm, Z 510 mm

• Table: 1300 × 570 mm, load up to 1000 kg

• Spindle: up to 12,000 rpm, approx. 18 kW

• Tool magazine: 30 tools

Pros: robust design, proven reliability
Cons: higher operating and ownership costs

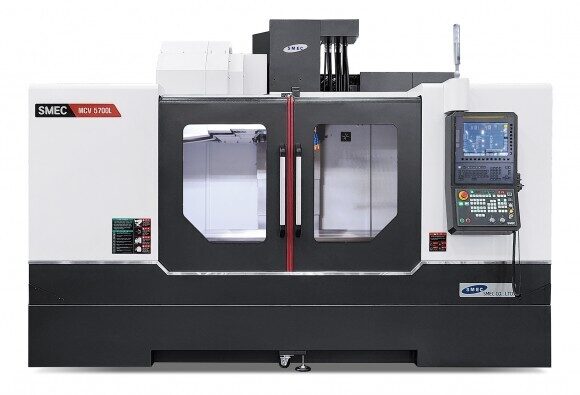

SMEC MCV 5700 (Best Choice)

• Travels: X 1050 mm, Y 570 mm, Z 520 mm

• Table: 1300 × 570 mm, up to 1000 kg

• Spindle: up to 12,000 rpm, 18.5 kW

• Rapid feeds: 36 / 36 / 30 m/min (X/Y/Z)

Pros:

• Excellent balance of power, speed, and workspace

• High productivity across a wide range of materials

• Strong value for money compared to competitors

Haas VF-4

• Travels: X 1270 mm, Y 508 mm, Z 635 mm

• Spindle: up to 8100 rpm

• Tool magazine: 20 tools (standard)

Pros: easy operation, strong service network
Cons: lower spindle speed and overall performance

Comparison Table

Conclusion

SMEC MCV 5700 stands out as the most balanced vertical machining center in this comparison, offering high productivity, versatility, and excellent value for modern manufacturing environments.
