Introduction

In metalworking, accuracy, surface quality, and process stability largely depend on how well vibrations are controlled in a machine tool. Vibrations are one of the main enemies of precision — they reduce tool life, increase noise, worsen surface finish, and can lead to defective parts. The most dangerous condition is resonance — when the frequency of external excitation coincides with the machine’s natural frequency, causing a sharp rise in vibration amplitude.

Damping is the process of dissipating (or absorbing) oscillatory energy to prevent its accumulation. In machine tools, frame rigidity, mass distribution, mounting methods, and damping elements all play a critical role.

This article explains two main damping approaches — passive and dynamic (active) — comparing their strengths, weaknesses, and applications, along with practical recommendations and innovations.

What Is Damping and How Vibrations Occur

Vibrations arise because every component — machine structure, spindle, tool, or workpiece — has its own natural frequency.
When the external force frequency matches it, resonance occurs and the amplitude spikes.
External sources include cutting forces, imbalance, feed irregularities, fixture vibrations, and even floor oscillations.

Damping converts part of that vibration energy into heat or disperses it through friction, elasticity, or active feedback systems.

There are two main types:

• Passive damping – built-in materials or structures that work without control systems.

• Dynamic (active) damping – adaptive systems that measure and counteract vibrations in real time.

Passive Damping: Simplicity and Reliability

Principle

Passive damping uses friction, material elasticity, and structural design to absorb vibration energy. It doesn’t rely on sensors or power supply — everything happens mechanically.

Common Methods

1. High-damping materials – polymer composites, vibration-absorbing alloys, or layered metal structures.

2. Cavity filling – empty spaces inside frames filled with granulate, resin, or concrete.

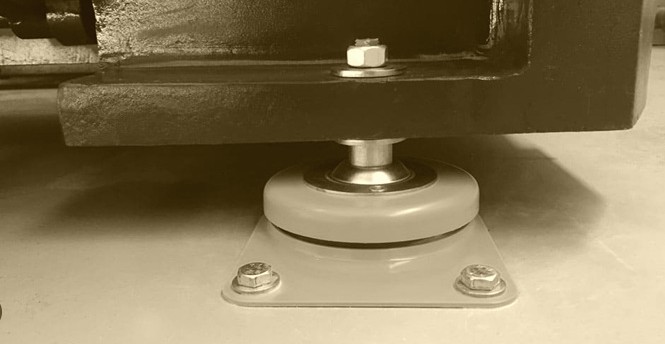

3. Vibration-isolating mounts and pads – elastomer supports or shock-absorbing bolts between machine and floor.

4. Rigid construction – thicker walls, cross ribs, and bracing to reduce deflection.

5. Inertial masses – tuned dampers installed to counteract resonance at specific frequencies.

Pros and Cons

Advantages:

• No electronics or maintenance required

• Very reliable and long-lasting

• Effective under stable cutting conditions

Disadvantages:

• Not adaptive to changing regimes

• Limited frequency range

• Can add weight and cost

Dynamic (Active) Damping: Smart Vibration Control

Principle

Dynamic damping systems measure vibrations using sensors and create counteracting forces through actuators in real time. They are adaptive and precise.

Components

• Sensors: accelerometers or strain gauges measuring vibration amplitude.

• Controller: filters and algorithms that calculate compensating signals.

• Actuators: electromagnetic or piezoelectric devices applying opposite-phase vibrations.

• Integration: linked to CNC or machine control for synchronized operation.

Advantages and Challenges

Advantages:

• Wide frequency response

• Adaptive to different operating modes

• Significantly improves accuracy and tool life

Challenges:

• Requires power and calibration

• Expensive and technically complex

• Sensitive to sensor/actuator delays

Comparison and Hybrid Systems

The most efficient modern systems combine passive and active damping — passive for baseline stability and active for adaptive fine-tuning.

Practical Recommendations

Detecting Vibration Problems

• Distinct “ringing” noise during cutting

• Visible tool wear or surface waviness

• Unstable feed or chatter marks

• Portable vibration analyzer readings

Quick Fixes

• Balance tools and spindles

• Improve fixture rigidity

• Adjust cutting parameters to avoid resonance zones

• Reinforce frame stiffness

• Add elastomer damping inserts

When Active Systems Are Worth It

• Wide range of cutting regimes

• Demanding precision requirements

• High spindle speeds or flexible setups

Innovations and Future Trends

• Smart damping materials (metal-polymer composites)

• Integrated vibration sensors

• AI-based adaptive control predicting resonance

• Microstructured surfaces to disperse vibration waves

• Modular adaptive damping units

Conclusion

Vibration and resonance are key factors that determine machining accuracy and tool life.
Passive damping offers simplicity and reliability, while active damping brings adaptability and precision.
A hybrid approach — combining both — delivers the best results: stable processes, improved surface finish, and extended tool life.
