Borunte BRTIRUS0805A Rūpnieciskais Robots
BRTIRUS0805A
Six axis robot
Short Description
BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. It is suitable for injection molding machine range from 30T-250T.
Main Specification
Arm Length (mm): 990
Repeatability (mm): ±0.05
Loading Ability (kg): 5
Power Source (kVA): 3.67
Product Introduction
BRTIRUS0805A type robot is a six-axis robot developed by BORUNTE. The whole operation system is simple, compact structure, high position accuracy and has good dynamic performance. The load ability is 5kg, especially suitable for injection molding, taking, stamping, handling, loading and unloading, assembly, etc. It is suitable for injection molding machine range from 30T-250T. The protection grade reaches IP54 at wrist and IP40 at body. The repeat positioning accuracy is ±0.05mm.
Accurate positioning
Fast
Long service life
Low failure rate
Reduce labor
Telecomm unication
Basic Parameters
| Item | Range | Max.speed | |
| Arm | J1 | ±170° | 237°/s |
| J2 | -98°/+80° | 267°/s | |
| J3 | -80°/+95° | 370°/s | |
| Wrist | J4 | ±180° | 337°/s |
| J5 | ±120° | 600°/s | |
| J6 | ±360° | 588°/s | |

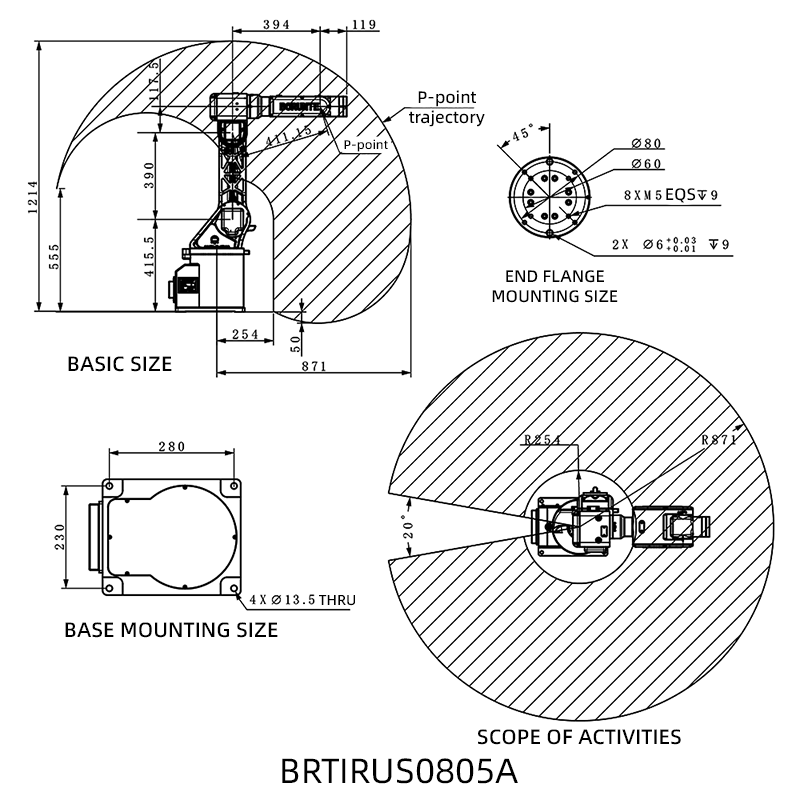

Trajectory chart
