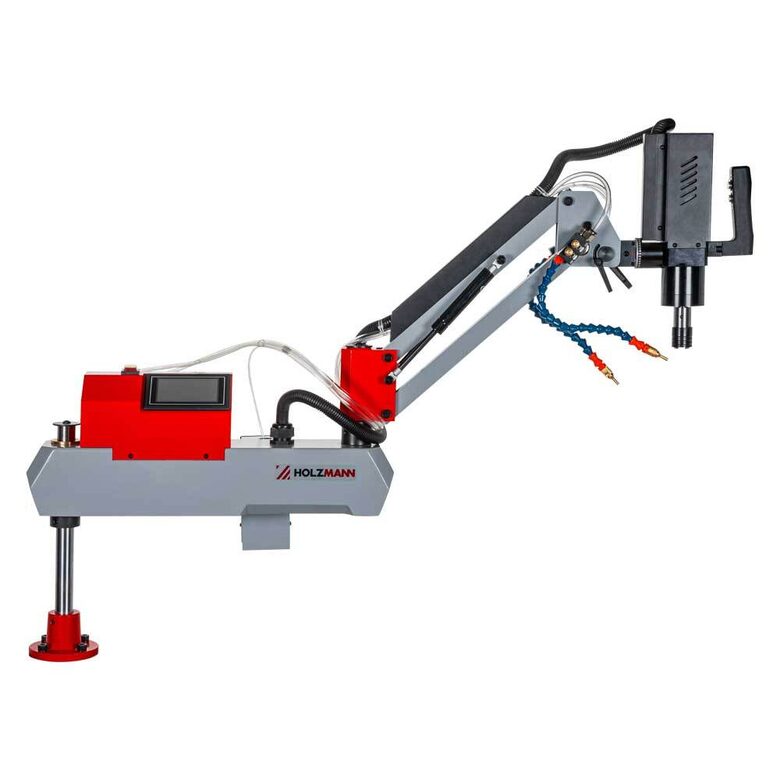

HOLZMANN GSM30E_R30_230V elektriskā vītņgriešanas iekārta
highlights
- collet set with torque limiting clutch
- thread diameter range M3-M30 (steel); M3-M36 (aluminium)
- touchscreen for setting machine-operation-adjustments (setting thread size, cutting depth,...)
- selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (reverse is activated automatically after the preselected thread depth is reached)
- cutting head can be swivelled 90
- cooling device (air-oil cooling) available, working pressure: 6-8 bar, oil volume ~ 200ml
- max. working range arm: 1100 mm, height adjustment max. 520 mm
Included in delivery: incl. collet set (DIN371:M6,M8,M10 DIN376: M12,M14,M16, M18, M20, M24, M27, M30)
optional accessories: machine stand GSMMS
GSM30E_R30_230Velectric tapping machine
The HOLZMANN GSM30E_R30_230V thread cutting machine with many helpful functions cuts threads (M3-M30) with precision and safety.
highlights
- collet set with torque limiting clutch
- thread diameter range M3-M30 (steel); M3-M36 (aluminium)
- touchscreen for setting machine-operation-adjustments (setting thread size, cutting depth,...)
- selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (reverse is activated automatically after the preselected thread depth is reached)
- cutting head can be swivelled 90
- cooling device (air-oil cooling) available, working pressure: 6-8 bar, oil volume ~ 200ml
- max. working range arm: 1100 mm, height adjustment max. 520 mm
Included in delivery: incl. collet set (DIN371:M6,M8,M10 DIN376: M12,M14,M16, M18, M20, M24, M27, M30)
optional accessories: machine stand GSMMS
technical details
motor data
motor power s1 in W
1200
voltage
230 V / 50 Hz
speed in min-1
0-200
volume level and vibration
sound pressure level in dB(A)
<70
weight
gross weight in kg
54
net weight in kg
46
packaging
packaging width in mm
730
packaging length in mm
870
packaging height in mm
230
general data
EAN code
9120132140113
