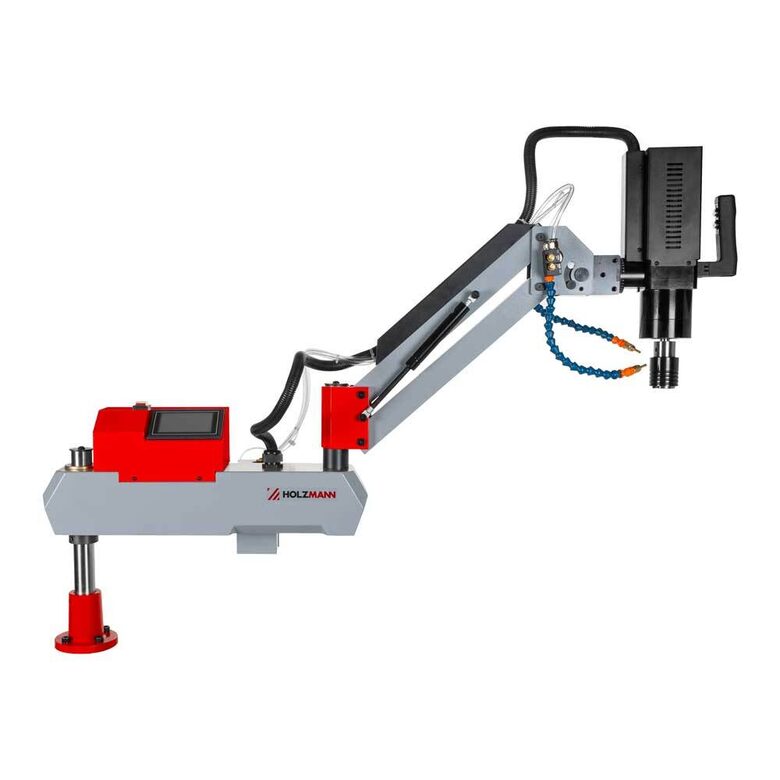

HOLZMANN GSM16E_R11_230V electric tapping machine
highlights
- collet set with torque limiting clutch
- thread diameter range M3-M16 (steel); M3-M20 (aluminium)
- touchscreen for setting machine-operation-adjustments (setting thread size, cutting depth,...)
- selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (reverse is activated automatically after the preselected thread depth is reached)
- cutting head can be swivelled 90
- cooling device (air-oil cooling) available, working pressure: 6-8 bar,
- storage container for an oil bottle available
- max. working range arm: 1030 mm, height adjustment max. 400 mm
Included in delivery: incl. collet set (DIN371:M3,M5,M5,M6,M8,M10; DIN376: M12,M14,M16)
optional accessories: machine stand GSMMS
GSM16E_R11_230Velectric tapping machine
The HOLZMANN GSM16E_R11_230V thread cutting machine with many helpful functions cuts threads (M3-M16) with precision and safety.
highlights
- collet set with torque limiting clutch
- thread diameter range M3-M16 (steel); M3-M20 (aluminium)
- touchscreen for setting machine-operation-adjustments (setting thread size, cutting depth,...)
- selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (reverse is activated automatically after the preselected thread depth is reached)
- cutting head can be swivelled 90
- cooling device (air-oil cooling) available, working pressure: 6-8 bar,
- storage container for an oil bottle available
- max. working range arm: 1030 mm, height adjustment max. 400 mm
Included in delivery: incl. collet set (DIN371:M3,M5,M5,M6,M8,M10; DIN376: M12,M14,M16)
optional accessories: machine stand GSMMS
technical details
motor data
motor power s1 in W
600
voltage
230 V / 50Hz
speed in min-1
0 - 312
volume level and vibration
sound pressure level in dB(A)
<70
weight
gross weight in kg
33
net weight in kg
28
packaging
packaging width in mm
690
packaging length in mm
610
packaging height in mm
190
general data
EAN code
9120132140106
